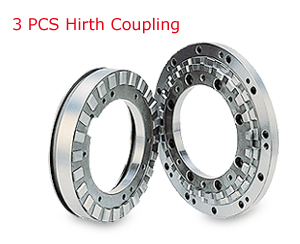

  • We offer all kinds of specifications which including 24T, 36T, 40T,48T, 60T, 72T, 360T, besides special orders also acceptable.
  • Use SCM21 meterial, after heat treating it has hight rigidity & durable impact force.
  • Hight accuracy, interchangable.
  • Indexing accuracy: ±3 sec, repeatability: ±1 sec.
  • Hight QC inspection, accuracy remains the same after long term use.

NO. Model NO. Outside DIA Outside DIA. Inside DIA. Number of teeth Teeth profile Top end thickness of teeth Inside thickness Total thickness
D1 D2 d1 N F H1 H2 H3
1 x.V1 135 - 60 24 18 18.75 13.5 34
024135-060
VO - 175 - 24 - 18.75 13.5 34
2 x.V1 200 - 120 24 20 21.75 16.5 40
024200-120
VO - 255 - 24 - 21.75 16.5 40
3 x.V1 200 - 120 30 20 21.75 16.5 40
030200-120
VO - 255 - 30 - 21.75 16.5 40
4 x.V1 250 - 180 360 8 20.2 18 40
0360250-180
VO - 300 - 360 8 20.2 18 40
5 x.V1 270 - 160 24 24 21.75 16.5 40
024270-160
VO - 330 - 24 - 21.75 16.5 40
6 x.V1 270 - 160 30 24 21.75 16.5 40
030270-160
VO - 330 - 30 - 21.75 16.5 40
7 x.V1 270 - 160 360 10 20.2 18 40
0360270-160
VO - 300 - 360 10 20.2 18 40
8 x.V1 335 - 220 48 24 25.75 20.5 48
048335-220
VO - 400 - 48 - 25.75 20.5 48
9 x.V1 425 - 300 48 28 26.75 21.5 50
048425-300
VO - 482 - 48 - 26.75 21.5 50
10 x.V1 425 - 300 60 28 26.75 21.5 50
060425-3000
VO - 482 - 60 - 26.75 21.5 50
11 x.V1 425 - 300 72 28 26.75 21.5 50
072425-300
VO - 482 - 72 - 26.75 21.5 50
12 x.V1 425 - 300 360 20 26 21.5 50
0360425-300
VO - 482 - 360 - 26 21.5 50
13 x.V1 540 - 415 48 32 29.25 24.0 55
048540-415
VO - 604 - 48 - 29.25 24.0 55
14 x.V1 540 - 415 60 32 29.25 24.0 55
060540-415
VO - 604 - 60 - 29.25 24.0 55
15 x.V1 540 - 415 72 32 29.25 24.0 55
072540-415
VO - 604 - 72 - 29.25 24.0 55
16 x.V1 540 - 415 360 24 29 24.0 55
0360540-415
VO - 604 - 360 - 29 24.0 55



NO. Model NO. Fixed bolt hole Positioning pin hole Withdraw bolt hole Pitch of top end Allowance of pitch top end
Number of holes P . C . D. Hole DIA. Top DIA. Depth of hole Number of pin hole P . C . D Angle of hole Hole DIA. Number of teeth hole P . C . D Spec. of teeth
Na   d2 d3 dh Nb   K。 d4 n   Mxp a ±A
1 x.V1 6 80 6.6 11 6.0 3 80 30° 8 2 80 M8x1.25 1.75 1.55
024135-060
VO 8 150 M10 14 8.5 3 150 22.5° 8 2 150 M8x1.25 1.75 1.55
2 x.V1 8 140 9.0 14 8.0 3 140 22.5° 8 2 140 M8x1.25 1.75 1.55
024200-120
VO 10 224 M12 17.5 10.5 3 224 18° 10 2 224 M10x1.50 1.75 1.55
3 x.V1 8 140 9.0 14 8.0 3 140 22.5° 8 2 140 M8x1.25 1.75 1.55
030200-120
VO 10 224 M12 17.5 10.5 3 224 18° 10 2 224 M10x1.5 1.75 1.55
4 x.V1 12 205 11.0 17.5 10.0 3 205 15° 10 2 205 M8x1.5 0.2 0.17
0360250-180
VO 12 270 M12 17.5 10.5 3 270 15° 12 4 270 M12x1.75 0.2 0.17
5 x.V1 8 195 11.0 17.5 10.0 3 195 22.5° 10 2 195 M10x1.50 1.75 1.55
024270-160
VO 12 300 M14 20 12.5 3 300 15° 12 4 300 M12x1.75 1.75 1.55
6 x.V1 8 195 11.0 17.5 10.0 3 195 22.5° 10 2 195 M10x1.50 1.75 1.55
030270-160
VO 12 300 M14 20 12.5 3 300 15° 12 4 300 M12x1.75 1.75 1.55
7 x.V1 8 220 11.0 17.5 10.0 3 220 22.5° 10 2 220 M10x1.5 0.2 0.17
0360270-160
VO 12 300 M14 20 12.5 3 300 15° 12 4 300 M12x1.75 0.2 0.17
8 x.V1 12 258 13.0 20 12.0 3 258 15° 12 4 258 M12x1.75 1.75 1.55
048335-220
VO 12 360 13.0 20 12.5 3 360 15° 12 4 360 M12x1.75 1.75 1.55
9 x.V1 12 335 13.0 20 12.0 3 335 15° 12 4 335 M12x1.75 1.75 1.56
048425-300
VO 12 450 13.0 20 12.5 3 450 15° 12 4 450 M12x1.75 1.75 1.55
10 x.V1 12 335 13.0 20 12.0 3 335 15° 12 4 335 M12x1.75 1.75 1.55
060425-3000
VO 12 450 13.0 20 12.5 3 450 15° 12 4 450 M12x1.75 1.75 1.55
11 x.V1 12 335 13.0 20 12.0 3 335 15° 12 4 335 M12x1.75 1.75 1.55
072425-300
VO 12 450 13.0 20 12.5 3 450 15° 12 4 450 M12x1.75 1.75 1.55
12 x.V1 12 335 13.0 20 12.0 3 335 15° 12 4 335 M12x1.75 1 0.9
0360425-300
VO 12 450 13.0 20 12.5 3 450 15° 12 4 450 M12x1.75 1 0.9
13 x.V1 12 450 13.0 20 12.0 3 450 15° 12 4 450 M12x1.75 1.75 1.55
048540-415
VO 12 570 17.0 26 16.5 3 570 15° 12 4 570 M12x1.75 1.75 1.55
14 x.V1 12 450 13.0 20 12.0 3 450 15° 12 4 450 M12x1.75 1.75 1.55
060540-415
VO 12 570 17.0 26 16.5 3 570 15° 12 4 570 M12x1.75 1.75 1.55
15 x.V1 12 450 13.0 20 12.0 3 450 15° 12 4 450 M12x1.75 1.75 1.55
072540-415
VO 12 570 17.0 26 16.5 3 570 15° 12 4 570 M12x1.75 1.75 1.55
16 x.V1 12 450 13.0 20 12.0 3 450 15° 12 2 450 M12x1.75 1.5 1.4
0360540-415
VO 12 570 17.0 26 16.5 3 570 15° 12 2 570 M12x1.75 1.5 1.4
