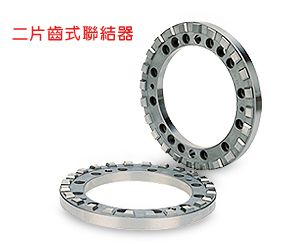

- 产品规格齐全,有 24,30,40,48,60,72,360 齿,且接受特殊规格订做。
- 使用高级 SCM21 钢材,并经过热处理加工,耐冲击性、高刚性。
- 超精密精度配合,互换性佳。
- 割出精度 ±3 秒,重复精度 ±1 秒。
|
|
|
号码 |
型号 |
外径 |
外径 |
内径 |
齿数 |
齿幅 |
齿顶厚度 |
内部厚度 |
齿总厚度 |
D1 |
D2 |
d1 |
N |
F |
H1 |
H2 |
H3 |
1 |
24080-44XV |
80 |
79 |
44 |
24 |
8 |
15.30 |
12.0 |
29 |
2 |
20100-40XV |
100 |
98 |
40 |
20 |
9 |
18.37 |
14.0 |
34 |
3 |
24100-40XV |
100 |
98 |
40 |
24 |
8 |
18.30 |
14.0 |
34 |
4 |
24120-60XV |
120 |
118 |
60 |
24 |
8 |
18.30 |
14.0 |
34 |
5 |
30120-60XV |
120 |
118 |
60 |
30 |
7 |
19.3 |
14.0 |
34 |
6 |
36140-80XV |
140 |
138 |
80 |
36 |
11 |
18.52 |
14.0 |
34 |
7 |
24160-100XV |
160 |
158 |
100 |
24 |
9 |
21.73 |
16.5 |
40 |
8 |
24180-120XV |
180 |
178 |
120 |
24 |
9 |
21.61 |
16.5 |
40 |
9 |
36180-120XV |
180 |
178 |
120 |
36 |
9 |
21.37 |
16.5 |
40 |
10 |
40180-120XV |
180 |
178 |
120 |
40 |
9 |
21.76 |
16.5 |
40 |
11 |
24200-120XV |
200 |
198 |
120 |
24 |
9 |
21.63 |
16.5 |
40 |
12 |
36200-120XV |
200 |
198 |
120 |
36 |
11 |
21.52 |
16.5 |
40 |
13 |
72200-120XV |
200 |
198 |
120 |
72 |
9 |
20.99 |
16.5 |
40 |
14 |
48210-135XV |
210 |
208 |
135 |
48 |
13 |
21.71 |
16.5 |
40 |
15 |
60250-160XV |
250 |
248 |
160 |
60 |
9 |
21.63 |
16.5 |
40 |
16 |
72250-160XV |
250 |
248 |
160 |
72 |
11 |
21.42 |
16.5 |
40 |
17 |
360250-160XV |
250 |
248 |
160 |
360 |
7 |
20.5 |
16.5 |
40 |
18 |
72280-190XV |
280 |
278 |
190 |
72 |
11 |
21.42 |
16.5 |
40 |
19 |
360280-190XV |
280 |
278 |
190 |
360 |
8 |
20.6 |
16.5 |
40 |
20 |
60320-210XV |
320 |
318 |
210 |
60 |
11 |
30.46 |
25.5 |
58 |
21 |
72320-210XV |
320 |
318 |
210 |
72 |
11 |
30.74 |
25.5 |
58 |
22 |
360320-210XV |
320 |
318 |
210 |
360 |
9 |
29.6 |
25.5 |
58 |
23 |
48400-280XV |
400 |
398 |
280 |
48 |
13 |
31.52 |
26.0 |
60 |
24 |
60400-280XV |
400 |
398 |
280 |
60 |
15 |
31.82 |
26.0 |
60 |
25 |
72400-280XV |
400 |
398 |
280 |
72 |
13 |
31.52 |
26.0 |
60 |
26 |
360400-280XV |
400 |
398 |
280 |
360 |
13 |
30.6 |
26.0 |
60 |
27 |
48520-415XV |
520 |
518 |
415 |
48 |
15 |
31.97 |
26.0 |
60 |
28 |
72520-415XV |
520 |
518 |
415 |
72 |
15 |
31.97 |
26.0 |
60 |
29 |
360520-415XV |
520 |
518 |
415 |
360 |
15 |
30.8 |
26.0 |
60 |
30 |
60600-480XV |
600 |
598 |
480 |
60 |
15 |
36.95 |
29.0 |
70 |
31 |
72600-480XV |
600 |
598 |
480 |
72 |
19 |
37.28 |
29.0 |
70 |
32 |
360600-480XV |
600 |
598 |
480 |
360 |
15 |
36 |
29.0 |
70 |
33 |
72700-560XV |
700 |
698 |
560 |
72 |
19 |
36.70 |
29.0 |
70 |
34 |
360700-560XV |
700 |
698 |
560 |
360 |
19 |
36 |
29.0 |
70 |
35 |
721000-830XV |
1000 |
998 |
830 |
72 |
22 |
61.70 |
54.5 |
120 |
36 |
3601000-830XV |
1000 |
998 |
830 |
360 |
22 |
61.5 |
54.5 |
120 |
37 |
721200-1000XV |
1200 |
1198 |
1000 |
72 |
22 |
71.70 |
64.5 |
140 |
38 |
3601200-1000XV |
1200 |
1198 |
1000 |
360 |
22 |
71.6 |
64.5 |
140 |
号码 |
型号 |
固定螺栓孔 |
定位梢孔 |
退出螺栓孔 |
节圆齿顶距 |
容许节圆齿顶距 |
孔数 |
P . C .
D. |
孔径 |
上径 |
孔径深 |
梢孔数 |
P . C . D |
孔度 |
外径 |
牙孔数 |
P . C . D |
牙规格 |
Na |
|
d2 |
d3 |
dh |
Nb |
|
K。 |
d4 |
n |
|
Mxp |
a |
±A |
1 |
24080-44XV |
6 |
60 |
M8 |
11.0 |
8.8 |
4 |
55 |
30° |
2 |
6 |
60 |
M8x1.25 |
2 |
1.8 |
2 |
20100-40XV |
6 |
60 |
6.6 |
11.0 |
6.0 |
3 |
60 |
30° |
8 |
2 |
60 |
M8x1.25 |
1.37 |
1.22 |
3 |
24100-40XV |
6 |
60 |
6.6 |
11.0 |
6.0 |
3 |
60 |
30° |
8 |
2 |
60 |
M8x1.25 |
1.3 |
1.15 |
4 |
24120-60XV |
6 |
80 |
6.6 |
11.0 |
6.0 |
4 |
80 |
30° |
8 |
2 |
80 |
M8x1.25 |
1.3 |
1.15 |
5 |
30120-60XV |
6 |
80 |
6.6 |
11.0 |
6.0 |
4 |
80 |
30° |
8 |
2 |
80 |
M8x1.25 |
2.3 |
2 |
6 |
36140-80XV |
6 |
100 |
6.6 |
11.0 |
6.0 |
3 |
100 |
30° |
8 |
2 |
100 |
M8x1.25 |
2.5 |
2.2 |
7 |
24160-100XV |
8 |
118 |
9.0 |
14.0 |
8.0 |
4 |
118 |
22.5° |
10 |
2 |
118 |
M8x1.25 |
2.5 |
2.3 |
8 |
24180-120XV |
8 |
140 |
9.0 |
14.0 |
8.0 |
3 |
140 |
22.5° |
8 |
2 |
140 |
M8x1.25 |
1.61 |
1.44 |
9 |
36180-120XV |
8 |
140 |
9.0 |
14.0 |
8.0 |
3 |
140 |
22.5° |
8 |
2 |
140 |
M8x1.25 |
1.37 |
1.22 |
10 |
40180-120XV |
8 |
140 |
9.0 |
14.0 |
8.0 |
3 |
140 |
22.5° |
8 |
2 |
140 |
M8x1.25 |
1.76 |
1.57 |
11 |
24200-120XV |
8 |
150 |
9.0 |
14.0 |
8.0 |
4 |
150 |
22.5° |
8 |
2 |
150 |
M8x1.25 |
1.63 |
1.45 |
12 |
36200-120XV |
8 |
150 |
9.0 |
14.0 |
8.0 |
3 |
150 |
22.5° |
8 |
2 |
150 |
M8x1.25 |
1.52 |
1.36 |
13 |
72200-120XV |
8 |
150 |
9.0 |
14.0 |
8.0 |
3 |
150 |
22.5° |
8 |
2 |
150 |
M8x1.25 |
0.99 |
0.89 |
14 |
48210-135XV |
12 |
165 |
9.0 |
14.0 |
8.0 |
3 |
158 |
15° |
10 |
2 |
165 |
M8x1.25 |
1.71 |
1.53 |
15 |
60250-160XV |
8 |
195 |
11.0 |
17.5 |
10.0 |
3 |
195 |
22.5° |
10 |
2 |
195 |
M10x1.50 |
1.63 |
1.45 |
16 |
72250-160XV |
8 |
195 |
11.0 |
17.5 |
10.0 |
3 |
195 |
22.5° |
10 |
2 |
195 |
M10x1.50 |
1.42 |
1.27 |
17 |
360250-160XV |
8 |
195 |
11.0 |
17.5 |
10.0 |
3 |
195 |
22.5° |
10 |
2 |
195 |
M10x1.5 |
0.5 |
0.4 |
18 |
72280-190XV |
8 |
222 |
13.0 |
20.2 |
12.0 |
3 |
222 |
22.5° |
10 |
2 |
222 |
M10x1.50 |
1.42 |
1.27 |
19 |
360280-190XV |
8 |
222 |
13.0 |
20.2 |
12.0 |
4 |
222 |
22.5° |
10 |
2 |
222 |
M10x1.5 |
0.6 |
0.5 |
20 |
60320-210XV |
10 |
258 |
13.0 |
20.2 |
12.0 |
4 |
258 |
18° |
12 |
4 |
258 |
M12x1.75 |
1.46 |
1.30 |
21 |
72320-210XV |
12 |
258 |
13.0 |
20.2 |
12.0 |
3 |
258 |
15° |
12 |
4 |
258 |
M12x1.75 |
1.74 |
1.55 |
22 |
360320-210XV |
12 |
258 |
13.0 |
20.2 |
12.0 |
3 |
258 |
15° |
12 |
4 |
258 |
M12x1.75 |
0.6 |
0.5 |
23 |
48400-280XV |
12 |
335 |
13.0 |
20.2 |
12.0 |
3 |
335 |
15° |
12 |
4 |
335 |
M12x1.75 |
1.52 |
1.36 |
24 |
60400-280XV |
12 |
335 |
13.0 |
20.2 |
12.0 |
3 |
335 |
15° |
12 |
4 |
335 |
M12x1.75 |
1.82 |
1.62 |
25 |
72400-280XV |
12 |
335 |
13.0 |
20.2 |
12.0 |
3 |
335 |
15° |
12 |
4 |
335 |
M12x1.75 |
1.52 |
1.36 |
26 |
360400-280XV |
12 |
335 |
13.0 |
20.0 |
12.0 |
3 |
335 |
15° |
12 |
4 |
335 |
M12x1.75 |
0.6 |
0.5 |
27 |
48520-415XV |
12 |
450 |
13.0 |
20.2 |
12.0 |
3 |
450 |
15° |
12 |
4 |
450 |
M12x1.75 |
1.97 |
1.76 |
28 |
72520-415XV |
12 |
450 |
13.0 |
20.2 |
12.0 |
3 |
450 |
15° |
12 |
4 |
450 |
M12x1.75 |
1.97 |
1.76 |
29 |
360520-415XV |
12 |
450 |
13.0 |
20.2 |
12.0 |
3 |
450 |
15° |
12 |
4 |
450 |
M12x1.75 |
0.8 |
0.7 |
30 |
60600-480XV |
12 |
530 |
17.0 |
26.0 |
16.0 |
4 |
530 |
15° |
12 |
4 |
530 |
M12x1.75 |
1.95 |
1.74 |
31 |
72600-480XV |
12 |
530 |
17.0 |
26.0 |
16.0 |
3 |
530 |
15° |
12 |
4 |
530 |
M12x1.75 |
2.28 |
2.04 |
32 |
360600-480XV |
12 |
530 |
17.0 |
26.0 |
16.0 |
3 |
530 |
15° |
12 |
4 |
530 |
M12x1.75 |
1 |
0.9 |
33 |
72700-560XV |
12 |
610 |
17.0 |
26.0 |
16.0 |
3 |
610 |
15° |
14 |
4 |
610 |
M12x1.75 |
1.70 |
1.50 |
34 |
360700-560XV |
12 |
610 |
17.0 |
26.0 |
16.0 |
3 |
610 |
15° |
14 |
4 |
610 |
M12x1.75 |
1 |
0.9 |
35 |
721000-830XV |
18 |
900 |
17.0 |
26.0 |
16.0 |
4 |
900 |
10° |
- |
4 |
900 |
M12x1.75 |
1.70 |
1.50 |
36 |
3601000-830XV |
18 |
900 |
17.0 |
26.0 |
16.0 |
4 |
900 |
10° |
- |
4 |
900 |
M12x1.75 |
1.75 |
1.4 |
37 |
721200-1000XV |
20 |
1080 |
21.0 |
32.0 |
20.0 |
4 |
1080 |
9° |
- |
4 |
1080 |
M16x2.00 |
1.70 |
1.50 |
38 |
3601200-1000XV |
20 |
1080 |
21.0 |
32.0 |
20.0 |
4 |
1080 |
9° |
- |
4 |
1080 |
M16x2.00 |
1.6 |
1.5 |
|
|
